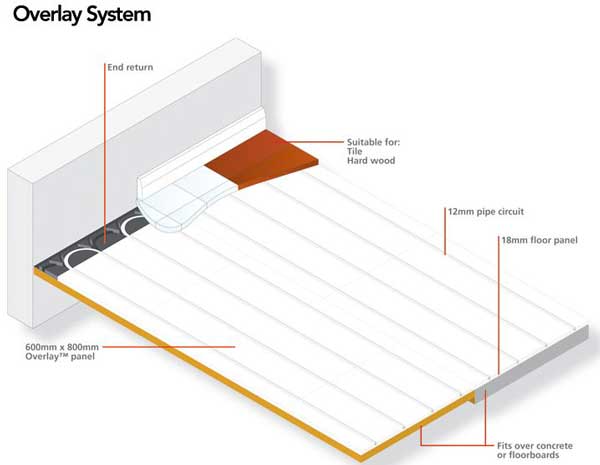

This
low profile system is designed specifically to
enable underfloor heating to be installed in
areas where floor height might be an issue.
The
panels are made of dense fibrous material and
are only 18mm deep enabling underfloor heating
to be installed over existing floors. It is more
heavy duty than the floating floor system allowing
the new finished floor covering, tiles or wood
to be laid directly on top.
Different versions
of the product are also available for the direct
use of carpet and laminates. The pipe used in
this system is 12mm in diameter.
The panels get glued to the existing floor
with special glue and most floor finishes can
be laid

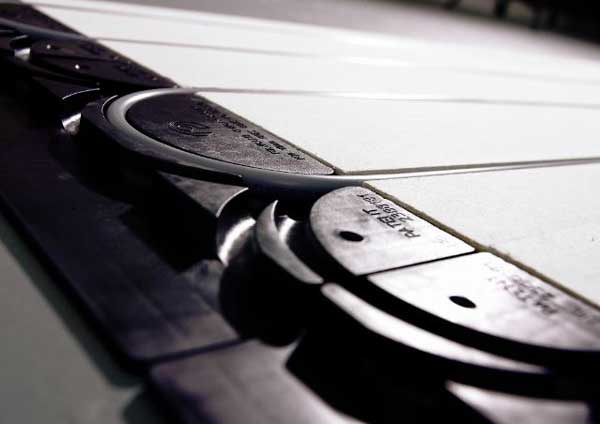

directly on top of this system, the black ‘end
returns’ are laid out and affixed directly
to the floor first, the boards are then laid
directly between allowing the underfloor heating
pipe to
sweep the room.
Again, a levelling compound may need to be used
to take out any imperfections in the floor prior
to the installation of the boards.
|
